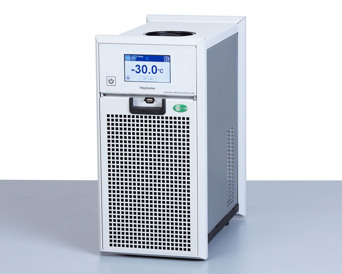

DuraChill Benchtop Chiller, 400W

Product # BA05A1G3-310A13C

Product # BA05A1G3-310A13C

Key Features:

Intuitive touchscreen display with 5 operating languages (Chinese, English, French, German, Spanish)
Full text messages and audible alarms
Continuous fluid level monitoring to prevent premature pump failure
Variable Fan Speed Technology for quieter operation
UV Light Biological Growth Inhibitor
Patented Self-diagnostic system
Low flow shutoff and alarm, high and low temperature alarms
Displayable temperature units in °C or °F
RS232, Dry Contact On/Off/Status; optional USB-B and Remote Probe port

Select Your Voltage:

$1.00

QTY

Resources

Common Specifications

Working Temperature Range °C	-10 to 30°C
Reservoir Capacity (gallons)	0.4
Reservoir Capacity (liters)	1.5
Temperature Stability °C	±0.1°
Display	TFT LCD
Pump Type	Centrifugal
Over-Temperature Protection / Failsafe Heater Control	Yes
Reservoir Liquid Level Indicator	Yes
WhisperCool Environmental Control Technology	Yes
Reservoir Drain	Yes
Refrigerant	R134a
Shipping Weight (pounds)	78.2
Shipping Weight (kilograms)	35.5

60 Hz Only

Part Number for 60 Hz Model	BA05A1G3-310A13C
Cooling Capacity @ +20°C (W) (60hz)	400
Included Hardware (60Hz)	Barbed fittings: 1 pair 1/2" NPT x 3/8" barb; 1 pair 1/2" NPT x 1/2" barb
Electrical Requirements (VAC/Hz/Ph/A) (60Hz)	120/60/1/3.2
Regulatory Approvals (60Hz)	ETL

50 Hz Only

Part Number for 50 Hz Model	BA05A0G3-310A13E
Included Hardware (50Hz)	Barbed fittings: 1 pair 1/2" NPT x 3/8" barb; 1 pair 1/2" NPT x 1/2" barb
Electrical Requirements (VAC/Hz/Ph/A) (50Hz)	200-240/50/1/2.4
Regulatory Approvals (50Hz)	CE, UKCA
